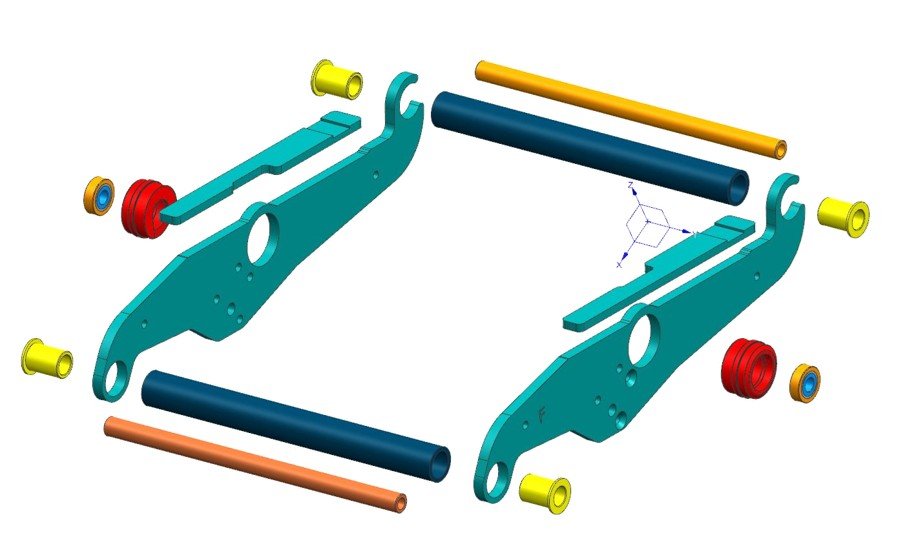

Designed sheetmetal chassis and linkage weldments for high volume manufacturing in System III redesign effort
Designed production passive isolation components such as elastomer springs and hydraulic dampers for passive fore-aft isolation stage for System II
Ensured adequate strength and stiffness of structural components to ensure performance adequacy and crash-worthiness

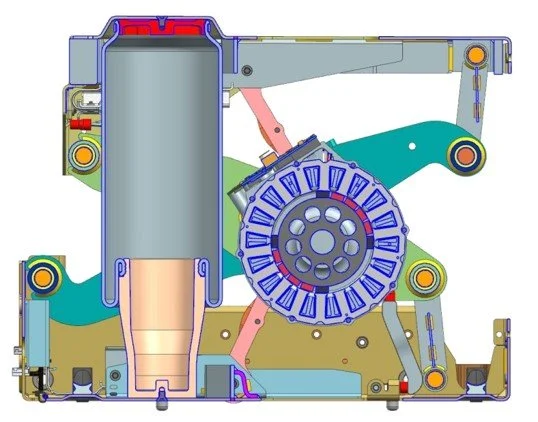

Designed components for integration of motors, bearings, pneumatic manifold, airbag, and hoses/cables

Bose expertise in electromagnetics, power amplification, and precise motion control were utilized to isolate drivers from harmful road vibration using linear and rotary motors in Class 8 Trucks (18 wheelers)

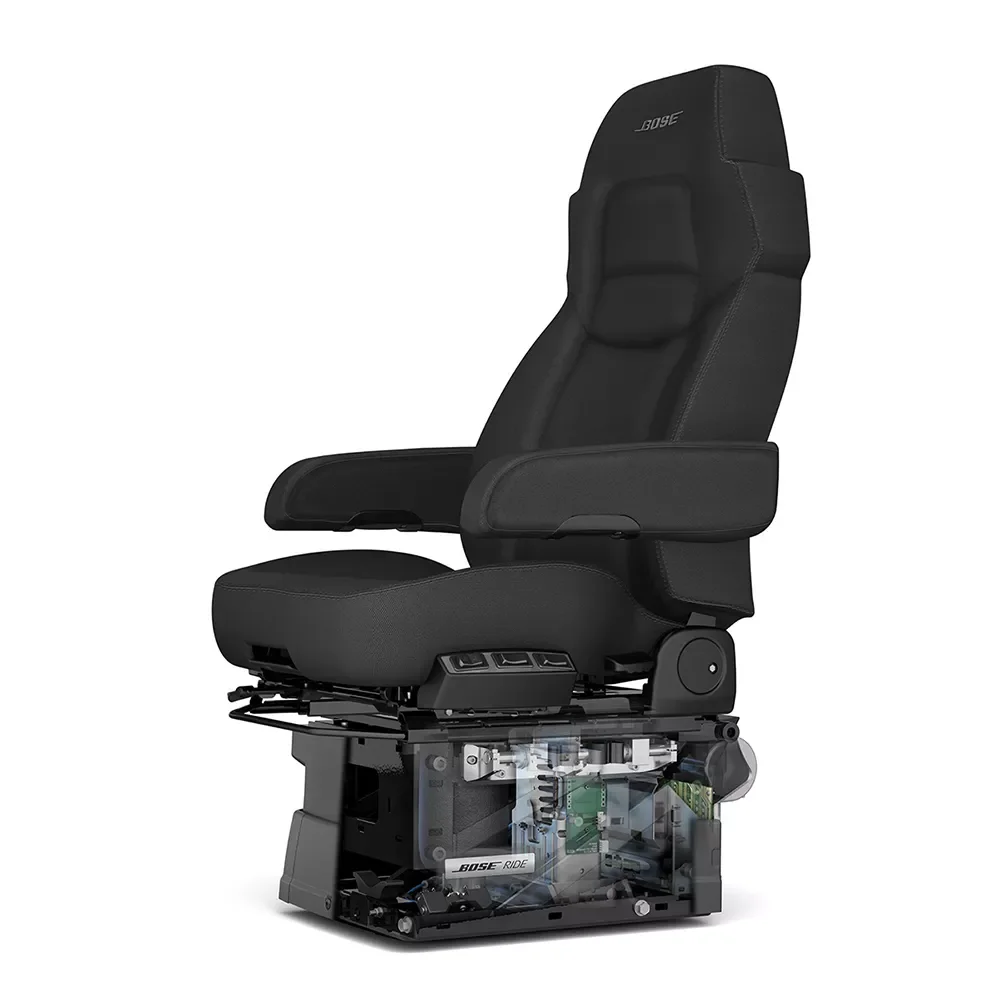

The Bose Ride System II required no changes to the vehicle’s cab and was offered an aftermarket retrofit, or as an OEM factory-installed option in Volvo and Freightliner trucks
Robust engineering provided one million maintenance-free miles to its users
